Product Description

Application

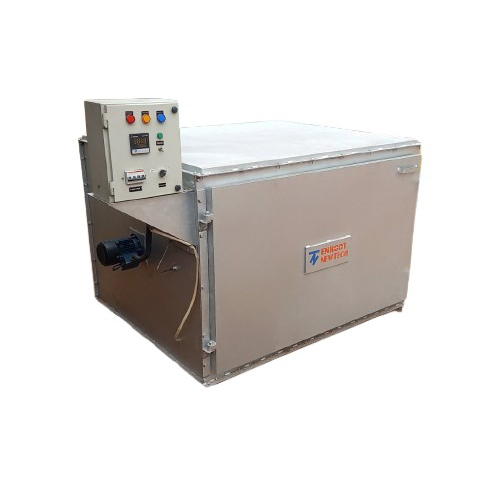

Copra Dryer is a specially designed drying unit to convert coconut into copra. This is an Air to Air tubular heat exchanger system. Where the normal atmosphere temperature enters inside the heating chamber converts into hot air and blown inside the dryer room.

We have 6 different models of the Copra Dryer based on capacity and machine power.

WORKING SYSTEM

  • The coconuts are cut into two pieces and kept inside one room.
  • Fire the heat exchanger then switch on the blower.
  • After attaining required temperature blow hot air inside the room for 10 to 14 hours.
  • Once it is partially dried. Remove the outer shell of the coconut.
  • Keep the coconut inside the room for second stage drying after removing the shell.
  • Depending on type of coconut and moisture blow hot air to dry for about 8 to 12 hours.
Your copra is ready. Slice the top layer and pack as required.

Key Features

  • Easy to control & maintain required temperature.
  • Sources of fuel : Wood waste, Coconut shell, Agro waste also coconut husk.
  • Easy maintnance & repair.
  • High pressure blower. CFM Ranging from 1000 to 20000 CFM.
  • Heavy construction, long life.
  • Easy to clean.
  • No blockage in chimney.
  • Low fuel consumption.
  • Available from 500 coconuts to 10000 coconuts per batch.
  • Double copra drying chamber system.
  • Maximum operating temperature 125C

Available Variants

MODEL NUMBER

POWER

CAPACITY - Coconuts/Hr

HT - 10

1 HP

1000 - 1250

HT - 20

2 HP

2000 - 2500

HT - 40

3 HP

4000 - 4500

HT - 80

5 HP

6000 - 6500

HT - 110

7.5 HP

8000 - 9000

HT - 160

10 HP

10000 - 11000
